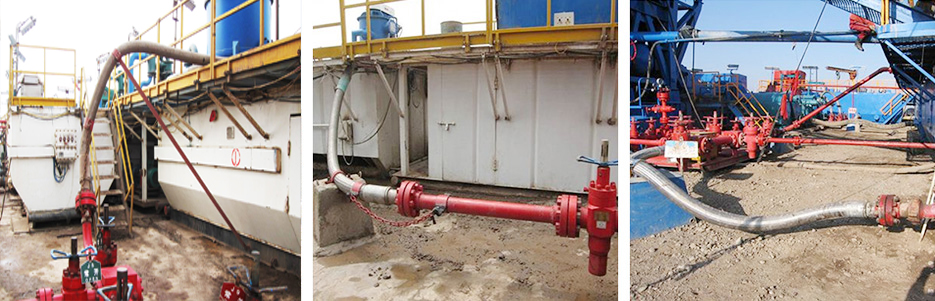

APPLICATION: Choke and kill line hose is used as flexible connection in the choke manifold and kill maifold system (or BOP system) to control well pressure during the drilling process.

Standards: API spec 16C / ISO

API  Monogram No.: 16C-0486

TEMPERATURE:

Rating A: -4 ℉to +180℉ (-20℃ to +82℃)

Rating B: -4 ℉to +212℉ (-20℃ to +100℃)

Rating K: -75 ℉to +180℉ (-60℃ to +82℃)

FSLs: FSL 0~3

CONSTRUCTION:

Tube: Modified NBR or HNBR Black. resisting abrasion, corrosion, oil, drilling muds and H2S

Reinforcement: Multiple layers of steel cable and adhesion fabric

Cover: Modified Nitrile Black

COUPLINGS: Swaged-meets NACE MR0175

OPTIONS: Safety clamps, hose lift eyes and SS armor available upon request

Type	ID		OD		WP		TP		Fire-Resistant	Safety Factor	FSL	Min Bengding Radius	Weight	Max length
	mm	in	mm	inch	psi	MPa	psi	MPa				m	kg/m	m
JLG-51X35	51	2	78.1	3.07	5000	35	7500	52.5	Yes	2.25	FSL3	1.2	17.9	45
JLG-51X70	51	2	83.2	3.28	10000	70	15000	105	Yes	2.25	FSL3	1.2	19.6	45
JLG-76X35	76	3	110.7	4.36	5000	35	7500	52.5	Yes	2.25	FSL3	1.4	28.6	45
JLG-76X70	76	3	131.9	5.19	10000	70	15000	105	Yes	2.25	FSL3	1.4	35.7	45
JLG-87X35	87	3.5	133.4	5.25	5000	35	7500	52.5	Yes	2.25	FSL3	1.4	36.1	45
JLG-87X70	87	3.5	157.6	6.2	10000	70	15000	105	Yes	2.25	FSL3	1.4	42.7	45
JLG-102X35	102	4	147.4	5.8	5000	35	7500	52.5	Yes	2.25	FSL3	1.5	39.9	45
JLG-102X70	102	4	167	6.57	10000	70	15000	105	Yes	2.25	FSL3	1.5	45.2	45
