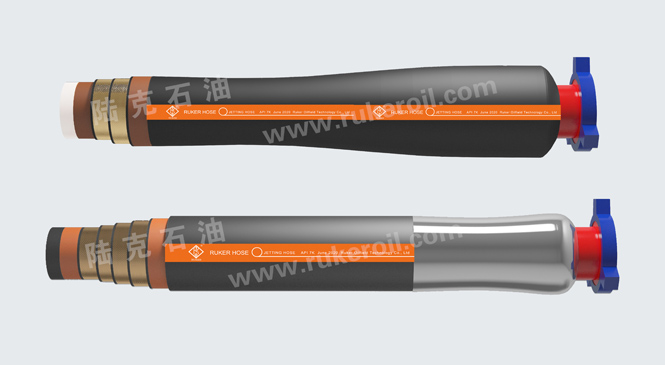

APPLICATION: Choke and kill line hose is used as flexible connection in the choke manifold and kill maifold system (or BOP system) to control well pressure during the drilling process.

Standards: API spec 16C / ISO

API  Monogram No.: 16C-0486

TEMPERATURE:

Rating A: -4 ℉to +180℉ (-20℃ to +82℃)

Rating B: -4 ℉to +212℉ (-20℃ to +100℃)

Rating K: -75 ℉to +180℉ (-60℃ to +82℃)

FSLs: FSL 0~3

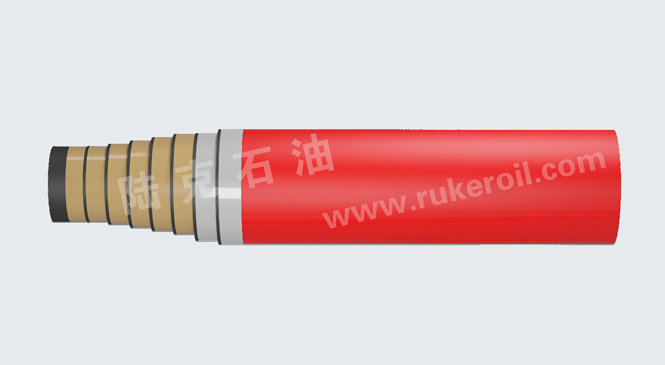

CONSTRUCTION:

Tube: Modified NBR or HNBR Black resisting abrasion, corrosion, oil, drilling muds and H2S.

Reinforcement: Multiple layers of steel cable and adhesion fabric

Cover: Modified Nitrile Black

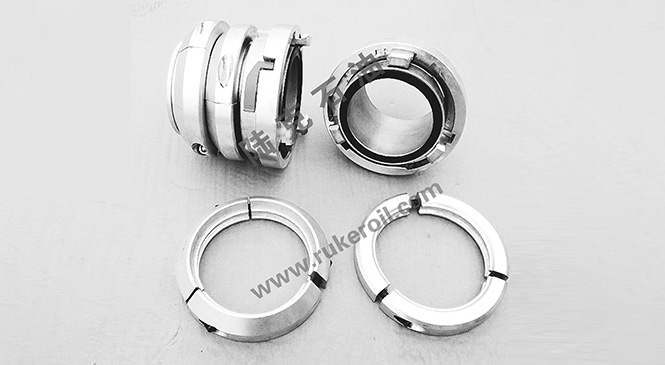

COUPLINGS: Build-in-meets NACE MR0175

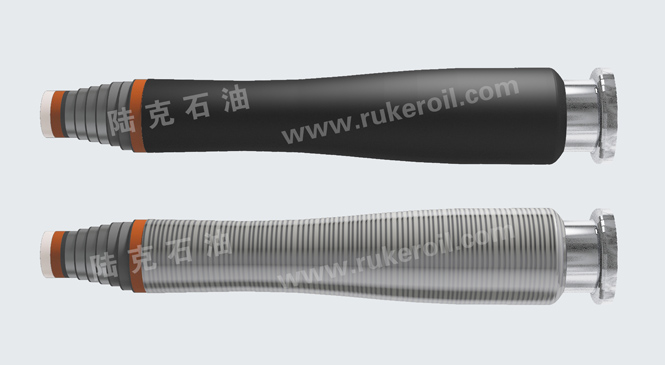

OPTIONS: Safety clamps, hose lift eyes and SS armor available upon request

Type	ID		OD		WP		TP		Fire-Resistant	Safety Factor	FSL	Min Bengding Radius	Weight	Max length
	mm	in	mm	inch	psi	MPa	psi	MPa				m	kg/m	m
JLG-FB-51X35	51	2	164	6.46	5000	35	7500	52.5	Yes	2.25	FSL3	1.2	46.8	45
JLG-FB-51X70	51	2	168	6.61	10000	70	15000	105	Yes	2.25	FSL3	1.2	49.7	45
JLG-FB-76X35	76	3	189	7.44	5000	35	7500	52.5	Yes	2.25	FSL3	1.4	58.5	45
JLG-FB-76X70	76	3	195	7.68	10000	70	15000	105	Yes	2.25	FSL3	1.4	61.2	45
JLG-FB-87X35	87	3.5	214	8.43	5000	35	7500	52.5	Yes	2.25	FSL3	1.4	93.1	45
JLG-FB-87X70	87	3.5	219	8.62	10000	70	15000	105	Yes	2.25	FSL3	1.4	94.1	45
JLG-FB-102X35	102	4	239	9.41	5000	35	7500	52.5	Yes	2.25	FSL3	1.5	103	45
JLG-FB-102X70	102	4	243	9.57	10000	70	15000	105	Yes	2.25	FSL3	1.5	105.5	45
