Application:

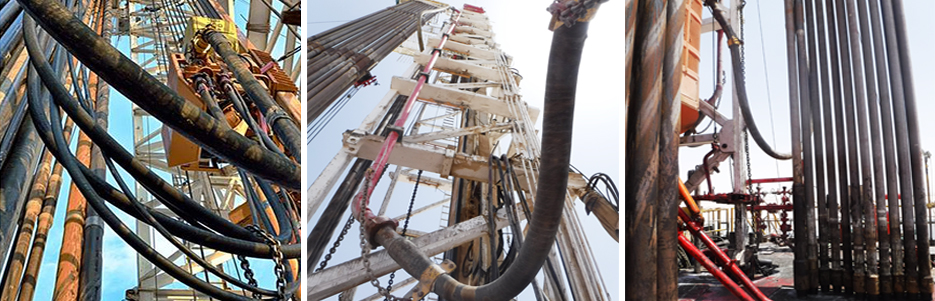

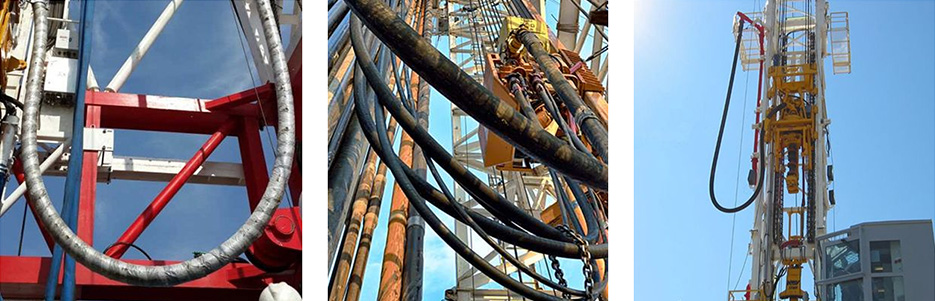

Flexible connection between the cementing pump manifold and cementing head for conveyance of cement slurries at high pressure.

Standards: API spec 7K / ISO

API Monogram No.: 7K-0547

TEMPERATURE:

Temperature Range I: -20℃ to +82℃ (-4 ℉to +180℉)

Temperature Range II: -20℃ to +100℃ (-4 ℉to +212℉)

FSLs: FSL 0

CONSTRUCTION:

Tube: Modified Nitrile. Black. resisting abrasion and corrosive cements

Reinforcement: Multiple layers of steel cable and adhesion fabric

Cover: Modified Nitrile. Black. resisting abrasion, corrosion, gouging, oil and weather

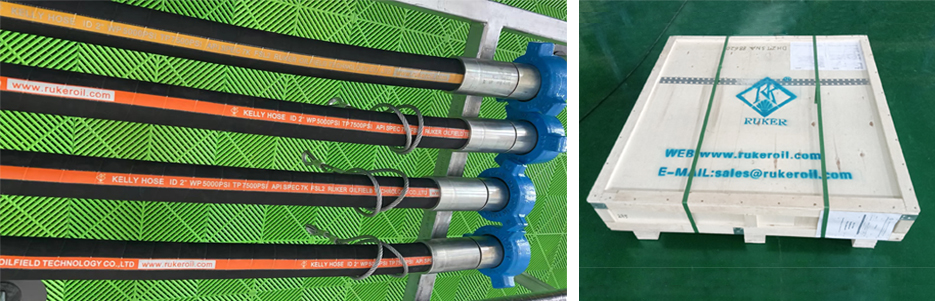

COUPLINGS: Swaged

OPTIONS: Safety clamps, hose lift eyes SS armor and polyethylene spiral guard available upon request

Type	API Level	ID		OD		WP		TP		Fire-Resistant	Safety Factor	FSL	Min Bengding Radius	Weight	Max length
		mm	in	mm	inch	psi	MPa	psi	MPa	No			m	kg/m	m
SNG-51X70		51	2	103	4.06	10000	70	15000	105	No	2.25	FSL0	1.2	19	45
SNG-51X105		51	2	116	4.57	15000	105	22500	157.5	No	2.25	FSL0	1.4	27	45
SNG-64X70		64	2.5	125.5	4.94	10000	70	15000	105	No	2.25	FSL0	1.2	29	45
SNG-64X105		64	2.5	150	5.91	15000	105	22500	157.5	No	2.25	FSL0	1.5	48	45
SNG-76X70		76	3	152	5.98	10000	70	15000	105	No	2.25	FSL0	1.5	45	45
SNG-76X105		76	3	168	6.61	15000	105	22500	157.5	No	2.25	FSL0	1.6	59	45
