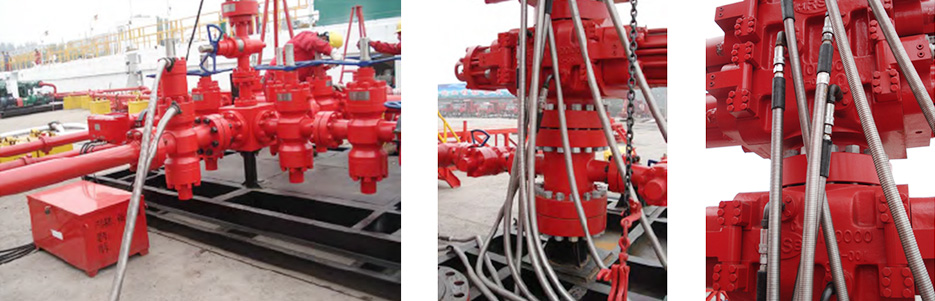

APPLICATION: Fire rated hydraulic hose assemblies for land and topside BOP applications.Armor BOP hoses are complying with API 16D guidelines to meet and exceed OD/1000/499 flame testing at 1300℉(704 ℃) for 5 minutes.

TEMPERATURE: -40 ℉to +250℉ (-40℃ to +121℃)

CONSTRUCTION:

Tube: Nitrile Black oil resistant synthetic rubber

Reinforcement: Multiple layers of steel cable and adhesion fabric

Cover: Fiber glass impregnated, flame resistant rubber; stainless steel armor to protect from external damage and flame

COUPLINGS: Globalspiral couplings

OPTIONS: Quick disconnects are available upon request

Type	ID		OD		WP		TP		Fire-Resistant	Safety Factor	Min Bengding Radius	Weight	Max length
	mm	in	mm	inch	psi	MPa	psi	MPa			mm	kg/m	m
BHK-25X21	25	1	46.5	1.83	3000	21	4500	31.5	Yes	4	381	3.5	45
BHK-32X21	32	1-1/4	55	2.17	3000	21	4500	31.5	Yes	4	457	4.7	45
BHK-38X21	38	1-1/2	61	2.4	3000	21	4500	31.5	Yes	4	559	5.7	45
BHK-51X21	51	2	75	2.95	3000	21	4500	31.5	Yes	4	686	7.6	45
BHK-25X35	25	1	46.5	1.83	5000	35	7500	52.5	Yes	4	381	3.7	45
BHK-32X35	32	1-1/4	58	2.28	5000	35	7500	52.5	Yes	4	457	6	45
BHK-38X35	38	1-1/2	65	2.56	5000	35	7500	52.5	Yes	4	559	7.1	45
BHK-51X35	51	2	80	3.15	5000	35	7500	52.5	Yes	4	686	10	45
